1. Introduction

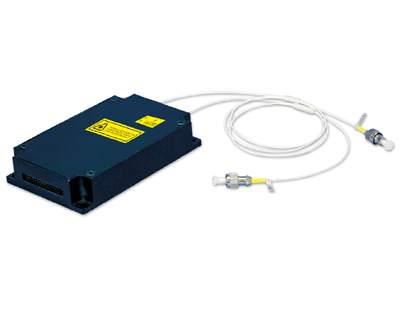

Jericore’s Polarization-Maintained EDFA is a miniaturized, high output power, high gain, and linear polarized, pulsed amplifier. Mechanical size is only 114 * 80 * 26mm. The product can be used in optical signal applications including OTDR, Raman-OTDR, Brillouin-OTDR fiber optic sensing systems or high-speed optical fiber communication systems.

Built-in microprocessor (MCU) communicates external host with controller through the RS-232 interface, completes real-time monitoring and configuring parameters of input / output optical power, and temperature of the pump laser and other key information. The EDFA provides default factory configuration parameters based on the specific order or customer requirements.

2. Features

>High Polarization Extinction Ratio

>High Output Power

>High Gain

>Low Rin & Phase Noise

>Compact Design

3. Applications：

>Optical Fiber Sensing

>Laser Radar

>Laboratory and Scientific Research
