Jericore's narrow-linewidth laser source is designed with the customer’s need in mind: user-friendly, highly integrated and turn-key operation.
Counseling hotline:Tel: +86-574-8735-1095 Cell: +86-134-8640-2870 Consultation
1. Introduction
Jericore's narrow-linewidth laser source is designed with the customer’s need in mind: user-friendly, highly integrated and turn-key operation.
This solution is positioned for reducing the development cycle time and allow for simple integration into R&D lab environments and advanced fiber optic sensing systems. External monitoring and control can be achieved via a Graphical User Interface (GUI) and a USB connection.
Jericore's laser source is ideally position as the best ease-of-use system for a multiple of lab-orientated applications where absolute accuracy, stability, lifetime reliability and high resolution are vital, such as remote sensing, distributed temperature, strain, or acoustic fiber optic monitoring, LIDAR and other precision metrology applications. In addition to unrivaled reliability and performance, the Jericore's laser-based system provides best value, excellent wavelength stability and fast frequency tuning.

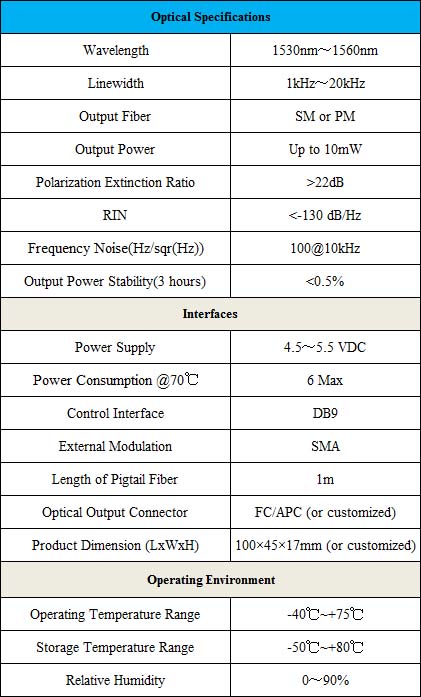

2. Features
>Linewidth 1kHz~20kHz
>Output Fiber SM or PM
>Output Power 10mW
>Operating Temperature -40℃~+75℃
3. Applications
>LiDAR(Light Detection and Ranging)
>BOTDA/BOTDR
>Laser light source
>Test and measurement
>Optical fiber hydrophone
