BOTDA

The Distributed Optical Fiber Temperature and Strain Sensing System developed by Jericore is a complex system based on a number of patented technologies.

Counseling hotline:Tel: +86-574-8735-1095 Cell: +86-134-8640-2870 Consultation
  • product details

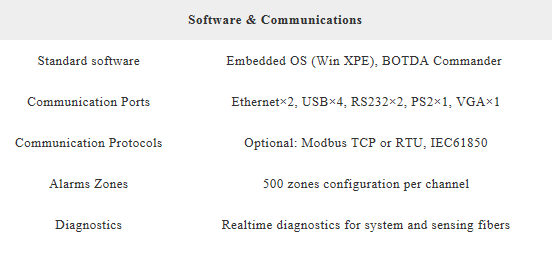

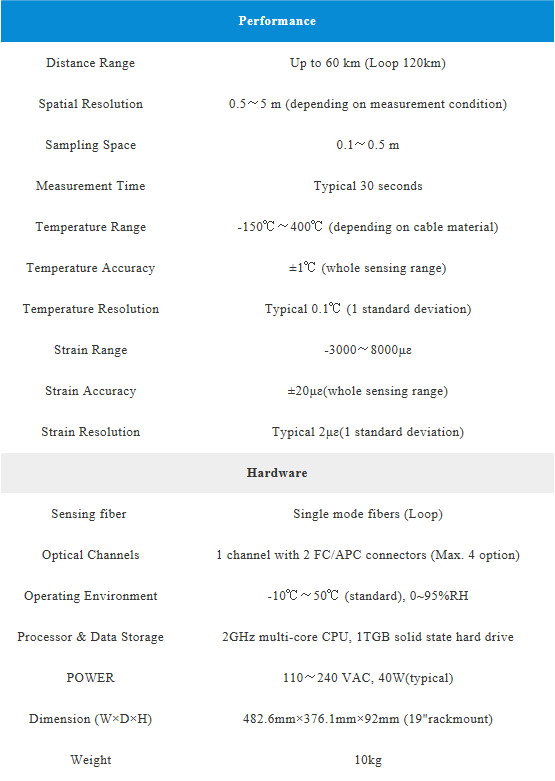

  • Product parameters
  • Data download


1. Introduction


The Distributed Optical Fiber Temperature and Strain Sensing System developed by Jericore is a complex system based on a number of patented technologies, integrated with optical, mechanical, electronic modules and software algorithms. It features in excellent technical specifications and user-friendly interface.

Owing to its fiber loop configuration, loop-sensing BOTDA can significantly enhance Brillouin signal strength, optimize SNR, improve measurement accuracy, and shorten measurement time. Using optical fiber as signal transmission and measurement media, the system has anti-jamming, anti-explosion and excellent performance of chemical resistance, is suitable for chemical, high voltage, nuclear and other dangerous environments. The real-time fault monitoring system has been widely used in important projects monitoring submarine cable, high-voltage cables, overhead lines, oil and gas pipelines, dams and bridges.


2. Features


>Distance range up to 60km (loop 120km)

>Spatial resolution 0.5-5m (depending on measurement condition)

>Temperature accuracy ±1℃ (whole sensing range)

>Strain accuracy ±20με (whole sensing range)


3. Applications


>Power line monitoring

>Structural health monitoring

>Pipeline monitoring

>Submarine cable monitoring
